NanoNAS

NanoNAS is a Network Attached Storage (NAS) Server Operating System designed to transform a basic computer into a dedicated HTTP, SMB/CIFS or AFP file server. Designed to fit on a single floppy disk, NanoNAS is perhaps the most compact 32-bit NAS OS available. NanoNAS is intended for use in any low-security environment or application that requires the simultaneous availability of large amounts of inexpensive networked storage. A single NanoNAS server is capable of exporting terabytes of networked storage and is capable of handling 50 or more networked users easily and efficiently even when running on modest Hardware. By design, NanoNAS is a community Workgroup server and does not support features such as user management, disk quotas or the ability to join domains. However, it is very easy to set-up, to administer and to use.

The NanoNAS CD-ROM contains two versions as follows:

• NanoNAS SMB - Boots off of and saves configuration settings to floppy disk. Designed primarily for use with WindowsTM clients, it exports all available storage space via SMB/CIFS and HTTP.
• NanoNAS AFP - Boots off of and saves configuration settings to floppy disk. Designed primarily for use with Apple OS X clients, it exports all available storage space via AFP and HTTP.

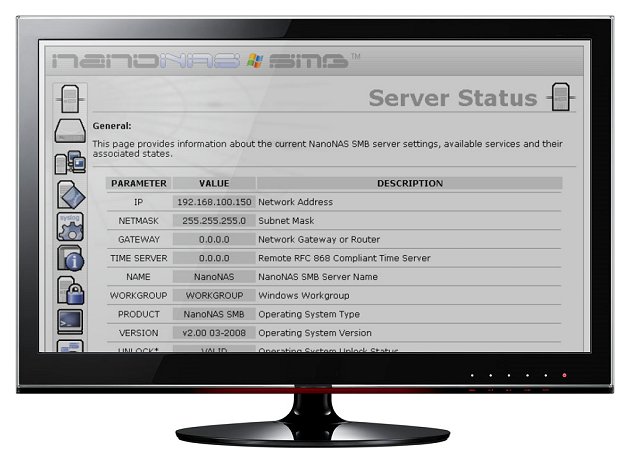

NanoNAS Provides Extensive Status Information

NanoNAS is optimized to perform at maximum efficiency with minimum of hardware requirements. Designed with simplicity in mind, NanoNAS is compact, stable and very reliable. NanoNAS boots directly into RAM where it runs in a modestly sized 4MB RAM-Disk. This approach ensures consistent and reliable OS operation. NanoNAS offers the following features and benefits:

• Easy to operate and to administer
• Inexpensive to run and maintain
• Boots directly into RAM
• Remote administration through Telnet
• Simple configuration menus
• Stable and reliable
• SMB/CIFS and HTTP or AFP and HTTP exported file systems
• BIOS independent fixed disk drive support
• Support for IDE (PATA) connected fixed disk drives
• Support for multiple IDE (PATA) interfaces
• HTML-based status report pages
• S.M.A.R.T. support
• Large Partition and file support*
• Extremely compact in size (Runs in an 4MB RAM Disk)
• Low Hardware requirements
• Wide range of PCI hardware support
• (ISA and EISA not supported)

NanoNAS Base System Requirements:

• Pentium or better processor
• PCI bus
• 32M or more of RAM
• Conventional 3.5 inch floppy disk drive
• 1 or more fixed disk drives
• PCI or on-board network interface adapter

NanoNAS Installation and Administration:

• NanoNAS Installation and Administration Guide r1.0 04-2008 (1569K PDF)

NanoNAS Hardware Reference:

• NanoNAS Hardware Reference Guide r1.0 03-2008 (274K PDF)

For support or additional information on NanoNAS and other related products, please review the Documentation and Support sections.

• Update SMB daemon adding unrestricted support for large files (4G+).
• Update NanoNAS SMB daemon configuration logic
• Update Status Pages generation code with general tweaks and updates
• Update Administration Utility management code with general tweaks and updates
• Perform general code cleanup

NanoNAS v2.0

• Initial release
